Alarms and Data Logging - Email Notifications
Last Update: Jul 15, 2024

Email Notifications

Print

Access Path

Control Panel > Alarms > Alarm Email Settings

Screenshots

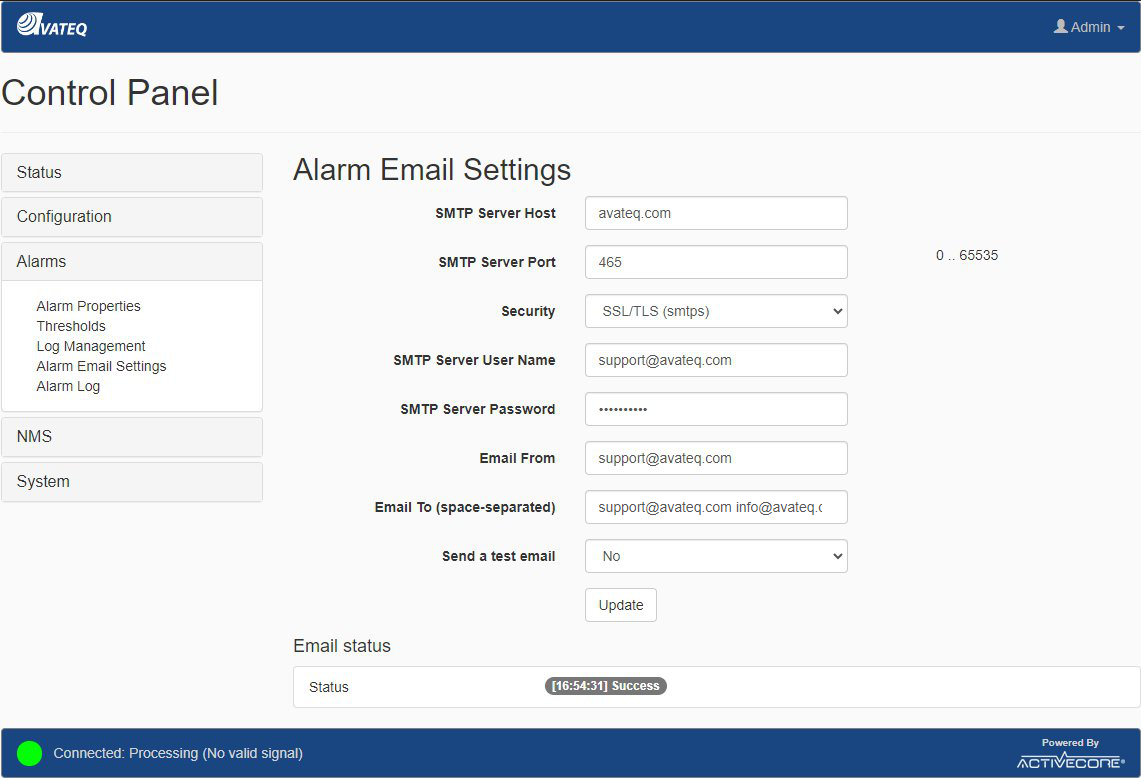

Alarm Notifications - Email Settings


Figure 1 - Alarm Email Settings

ActiveCore Framework - Alarm Email Example


Figure 2 - Alarm Email Example

Description

By setting up email delivery, the alarm notifications can be set to be delivered to the engineer's mailbox for review and action. Alarm Management describes how to turn on email notifications for individual alarms.

Email Delivery Setup (Figure 1)

FieldValuesDefaultDescription
SMTP Server HostSMTP Server URL or IP Address
SMTP Server Port0 .. 6553525Assigned SMTP server port
SecurityNone (smtp)
SSL/TLS (smtps)

STARTTLS (smtp upgrade to smtps)

NoneSMTP server security:
None (smtp): plain SMTP connection
SSL/TLS (smtps): establish SMTPS connection (SSL/TLS)

STARTTLS (smtp upgrade to smtps): plain SMTP connection upgraded to smtps

SMTP Server User NameEmail login account username. Optional for plain SMTP connection.
SMTP Server PasswordEmail login account password. Optional for plain SMTP connection.
Email FromAssigned to the unit email address
Email To (space-separated)Email address or a space-separated list of addresses for the alarm notification delivery.
Send a test emailYes

No

No

Test email settings:

Yes: a test message will be tried upon clicking Update
No: no test message

UpdateApply new settings.
Email Status

Show a timestamped status of the email delivery
